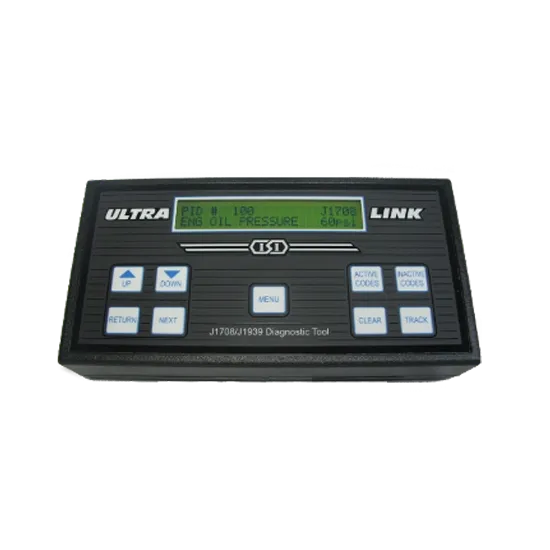

Ultra-Link Diagnostic Tool

The XL1000 Ultra-Link is a universal diesel diagnostic tool built for fast, dependable troubleshooting across heavy-duty trucks and industrial equipment. Simply connect to the vehicle’s diagnostic port to power the unit and immediately begin viewing live system data.

Designed for real-world shop and field use, the XL1000 reads and displays active and inactive fault codes, monitors multiple live parameters at once, and stores recordings directly on the device for later playback. Its rugged housing, tactile keypad, and straightforward interface make it easy to operate without special software or ongoing fees.

The Ultra-Link supports both J1587/J1708 and J1939 networks, allowing technicians to diagnose a wide range of electronically controlled diesel engines, transmissions, and ABS systems. There are no subscriptions, no cartridges, and no mandatory updates. Lifetime technical support is included.

For safety reasons, the XL1000 should not be operated by the driver while the vehicle is in motion. If live data monitoring is required during operation, a second person must operate the tool while another person drives.
